Robust structure

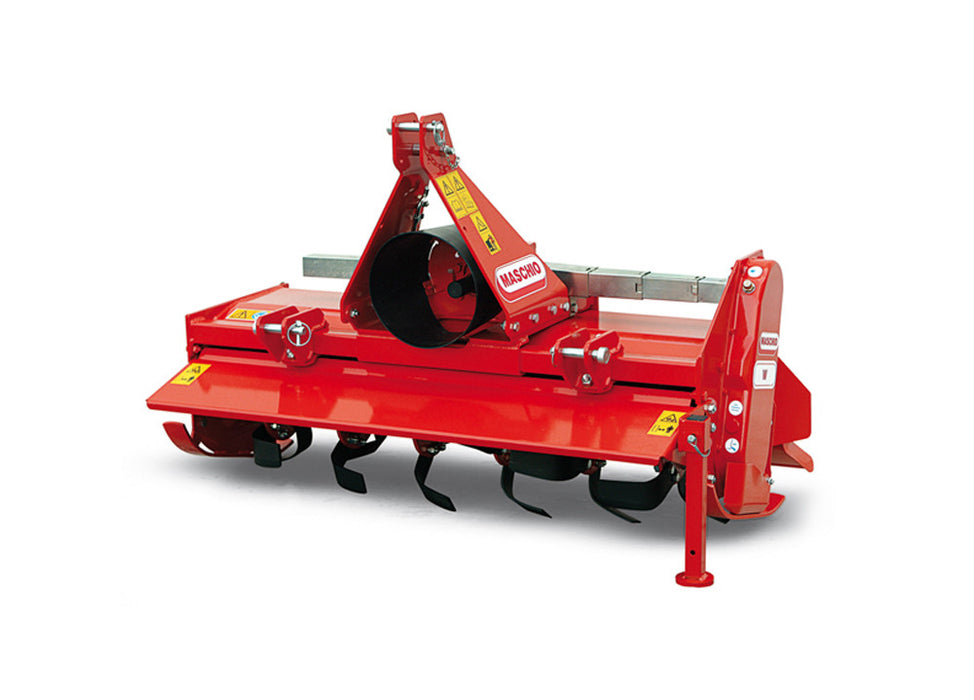

The simple and robust structure of model W allows to operate in all types of soil. The professional equipment set-up is seen in details such as the single-speed gearbox that ensures reduction of rotor revolutions, equipped with an oil level meter directly from the filler cap. The final transmission is ensured by a chain system with oil bath lubrication, always in maximum safety thanks to the PTO that is standard fitted with the slip clutch standard PTO shaft. The working depth is adjusted according to the working needs by means of a side skids adjuster up to a max of 18 cm.

High versatility

The tiller can be manually moved laterally with respect to the three-point hitch, allowing model W to adapt to multiple uses, thanks to the set-up that can be quickly carried out by fixing the pin in the desired position.

W is equipped with 4 blades per flange. This geometry makes it suitable even in the presence of moist or partially clayey soils. In dry soil conditions, 2 additional blades can be mounted per flange, thus improving its refining capacity.

The rear bonnet is wider than the rotor to ensure ground levelling even in adjacent areas. This amplifies the perceived work width.

Specifications

N. of blades: 48

Working depth: 7in

Min power HP: 30hp

Max power HP: 40hp

Working width: 65in

Transport width: 70in

STANDARD DOTATION

Universal 3-point hitch, cat. I

PTO shaft with slip clutch (tractor side yoke 1" 3/8 Z6)

Side chain drive in oil bath

Three point hitch manual offset

4 blades per flange (side blades are always mounted outwards)

CE safety protections
